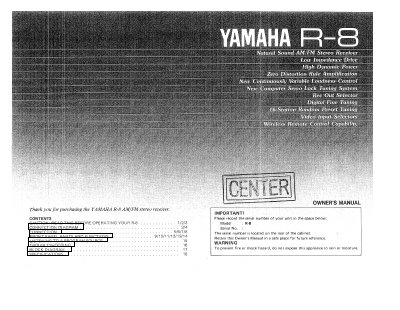

Yamaha R-8 Stereo Receiver Owner's Manual

About this manual

This document is the Owner's Manual for the Yamaha R-8 AM/FM stereo receiver. It includes important safety instructions, a connection diagram, and descriptions of the front panel parts and functions. The manual also covers how to listen to program sources and provides a troubleshooting guide for common operating errors.

What's inside

• Safety Instructions
• Explanation of Graphical Symbols
• Connection Diagram
• Front Panel Parts and Functions
• Listening to a Program Source
• Troubleshooting
• Specifications

Frequently asked questions

What happens if the internal temperature of the receiver becomes too high?

A thermal protector will cut off the power.

How long will the back-up power supply keep preset stations memorized if the unit is unplugged?

It will keep the preset stations memorized for one week.

What are the rated voltages for the voltage selector switch on the rear panel?

The switch must be set for 110/126/220/240 V AC, 50/60 Hz.
