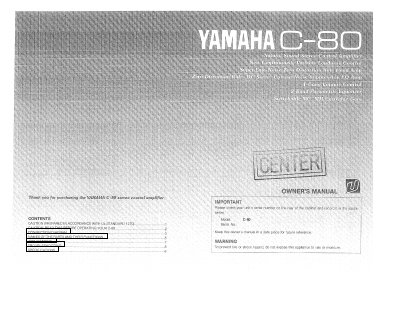

Yamaha C-80 Stereo Amplifier User Manual

Brand: Yamaha
Category: Player
Document type: User Manual
Language: English
Pages: 10
File format: PDF
File size: 2.2 MB
Published: 03 July, 2012
Updated: 03 July, 2012
Model: C-80
MD5 checksum: 8C13652349668F04B3B4CE69AF7872CB
PDF: Yamaha C-80 Stereo Amplifier User Manual PDF

About this manual

The Yamaha C-80 is a stereo amplifier designed to drive speakers and connect various audio sources. It features two turntable inputs (one supporting MM and MC cartridges, the other MM only), a tuner input, tape deck inputs, digital audio disc terminals, and auxiliary inputs. The unit also includes switched and unswitched AC outlets for powering external equipment.

What's inside

Safety Instructions
Connecting Turntable
Connecting Tuner
Connecting Tape Deck
Digital Audio Disc Terminals
Aux Terminals
Power Amp Connection
Parametric Equalizer

Specifications

Switched power supply maximum load	200 W
Unswitched power supply maximum load	800 W

Frequently asked questions

Which turntable input supports MC cartridges?

The PHONO 1 turntable can carry either an MM or an MC cartridge.

What is the impedance requirement for the PHONO 2 input?

It requires an MM cartridge with 47k ohms and 220 pf impedance.

How do you lower the output signal for high output level cartridges?

Press the Phono Gain Switch button in to lower the output signal by 10 decibels.
