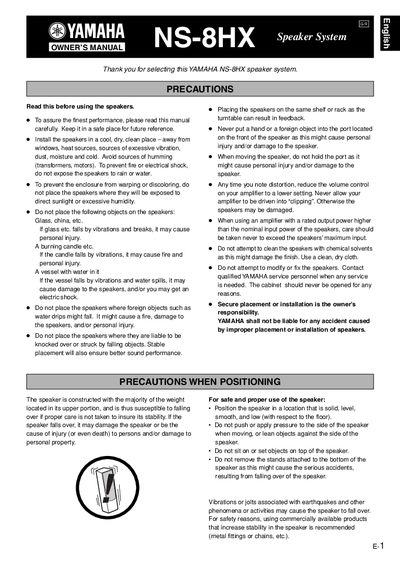

This manual details the use of the YAMAHA NS-8HX speaker system, including installation, connection, use and maintenance.
The Yamaha NS-8HX is a magnetic shielding type 3-way bass reflex speaker system. It features two 20 cm cone woofers, two 13 cm cone mid-range drivers with wave guide horns, and two 3 cm dome tweeters. The system includes spikes for carpet installation to improve stability and sound quality.
| System Type | 3-way 4-speaker bass reflex speaker system |
|---|---|
| Woofer Size | 20 cm (8") cone woofer x 2 |
| Mid-range Size | 13 cm (5") cone mid-range |
| Tweeter Size | 3 cm (1") dome tweeter |
| Impedance | 62 ohms |
| Frequency Response | .35 Hz to 50 KHz |
| Nominal Input Power | 140 W |
| Maximum Input Power | 400 W |
| Sensitivity | 92 dB/2.83 Vim |
| Crossover Frequency | 600 Hz, 4 KHz |
Better stereo images will be obtained when the speakers are slightly angled in towards the listeners.
Turn the nut close to the tip, screw the spike into the stand hole, place the speaker upright, adjust length, and turn the nut up firmly.
