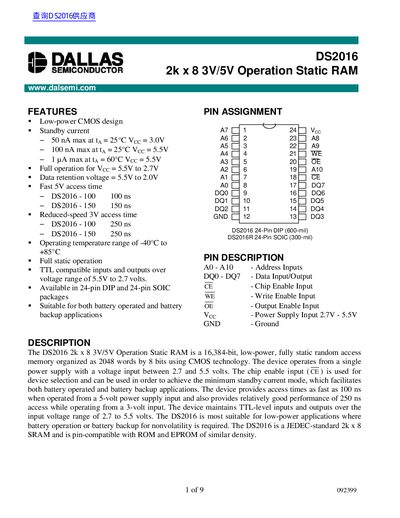

The DS2016 2k x 8 3V/5V Operation Static RAM is a 16,384-bit, low-power, fully static random access memory organized as 2048 words by 8 bits using CMOS technology. The device operates from a single power supply with a voltage input between 2.7 and 5.5 volts. The chip enable input ( CE ) is used for device selection and can be used in order to achieve the minimum standby current mode, which facilitates both battery operated and battery backup applications. The device provides access times as fast as 100 ns when operated from a 5-volt power supply input and also provides relatively good performance of 250 ns ac.
The DS2016 is a 16,384-bit, low-power, fully static random access memory organized as 2048 words by 8 bits using CMOS technology. It operates from a single power supply with a voltage input between 2.7 and 5.5 volts, making it suitable for both battery-operated and battery backup applications.
| Capacity | 2k x 8 (16,384 bits) |
|---|---|
| Organization | 2048 words x 8 bits |
| Power Supply Range | 2.7V to 5.5V |
| Access Time (5V) | 100ns / 150ns |
| Access Time (3V) | 250ns |
| Operating Temperature | -40°C to +85°C |
The access time is 100ns when operated from a 5-volt power supply.
The access time is 250ns when operating from a 3-volt input.
The standby current is a maximum of 100 nA at 25°C with Vcc = 5.5V.
