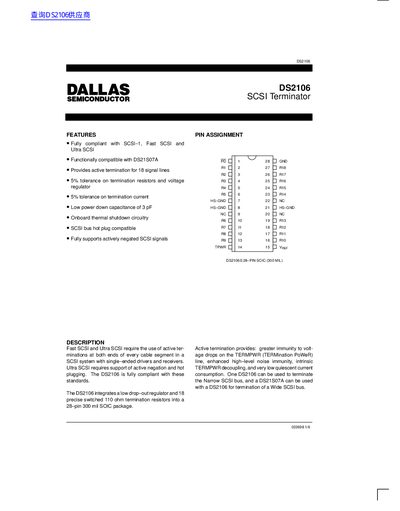

The DS2106 is a fully compliant SCSI-1, Fast SCSI and Ultra SCSI SCSI terminator. It functionally compatible with DS21S07A, providing active termination for 18 signal lines. The termination resistors and voltage regulator are within 5% tolerance, the termination current is within 5% tolerance, the power down capacitance is 3 pF, and there is on-board thermal shutdown circuitry. It is compatible with hot plug of SCSI bus and fully supports actively negated SCSI signals.
The DS2106 is a single-chip termination subsystem designed for Narrow SCSI systems. It integrates a low-drop-out regulator and 18 precise switched 110 ohm termination resistors into a 28-pin SOIC package. The device provides active termination for 18 signal lines, ensuring compliance with SCSI-1, Fast SCSI, and Ultra SCSI standards.
| Package Type | 28-pin SOIC (300 mil) |
|---|
The device is fully compliant with SCSI-1, Fast SCSI, and Ultra SCSI.
It provides active termination for 18 signal lines.
