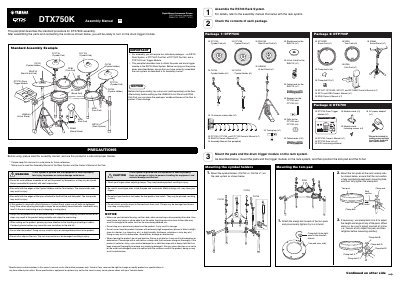

Yamaha DTX750K Drum Kit Assembly Manual

About this manual

This manual describes the standard procedure for assembling the Yamaha DTX750K electronic drum kit. It details how to mount the various pads (cymbal, tom, snare, kick, and hi-hat) and the drum trigger module onto the RS700 Rack System. The guide also includes instructions for connecting the pads to the module using the provided snake cable.

What's inside

• Assemble the RS700 Rack System
• Check the contents of each package
• Mount the pads and the drum trigger module
• Mounting the cymbal holder
• Mounting the tom pad
• Mounting the drum trigger module
• Mounting the cymbal pads
• Assembling the kick pad
• Mounting the snare stand and pad
• Assembling the hi-hat stand

Frequently asked questions

What packages are required to assemble the DTX700 drum kit?

You will require four individual packages: an RS700 Rack System, a DTP750C Pad Set, a DTP750P Pad Set, and a DTX700 Drum Trigger Module.

How many turns should the clamp bolt be tightened provisionally when mounting the tom pads?

You should provisionally tighten the clamp bolt by 5 or 6 turns before fully tightening it.

What should be done if the stopper's key bolt was not sufficiently loosened before passing the stopper over the cymbal holder's shaft?

You should loosen the key bolt as much as possible without removing it.
