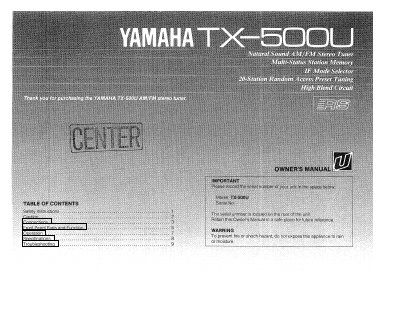

The Yamaha TX-500U is a sophisticated AM/FM stereo tuner designed to ensure proper operation with best possible performance. This manual covers essential safety instructions, such as avoiding water exposure and ensuring proper ventilation, before detailing the setup process.
The guide explains how to connect various antennas, including indoor FM, outdoor FM, and loop AM antennas, to achieve optimal reception. It also describes the functions of the front panel controls, allowing users to select between AUTO and MANUAL tuning modes, adjust IF bandwidth (NARROW/WIDE), and store up to 20 preset stations.
Up to 20 station frequencies and reception modes can be stored using the preset station button.
Press this button to eliminate an annoying high frequency noise from FM broadcast.
You should press the WIDE IF MODE button when the reception signal is strong to obtain distortion-free sound.
