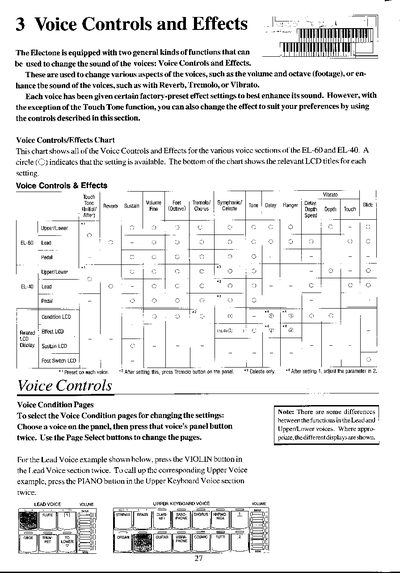

Yamaha EL-60/EL-40 Voice Controls and Effects Guide

Brand: 3
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 11
File format: PDF
File size: 3.1 MB
Published: 02 July, 2012
Updated: 02 July, 2012
Model: EL-40
MD5 checksum: 0420595E498EF07A9163C4CF1F2C3402
PDF: Yamaha EL-60/EL-40 Voice Controls and Effects Guide PDF

About this manual

The document details the two main categories of functions available on the Yamaha Electone: Voice Controls for adjusting volume and octave (feet), and Effects to enhance sound. It provides a chart showing which controls are available for specific voice sections like Lead, Upper Keyboard, Pedal, and Flute voices.

What's inside

Voice Controls
Effects Chart
Vibrato Settings
Touch Tone Function
Reverb Adjustment
Sustain Effect
Tremolo Operation
Symphonic/Celeste

Specifications

Supported Models	EL-60, EL-40
Volume Range	0 — 24
Octave Settings	PRE., 4', 8', 16'
Sustain Length Range	0 — 12

Frequently asked questions

What is the range for fine adjustment of voice volume?

The range for fine adjustment of the voice volume is from 0 to 24.

How many settings are available for reverb depth?

There are seven settings for reverb depth, ranging from a minimum of 0 to the maximum.

What is the range for sustain length?

The range for sustain length applied to each voice section is from 0 to 12.
