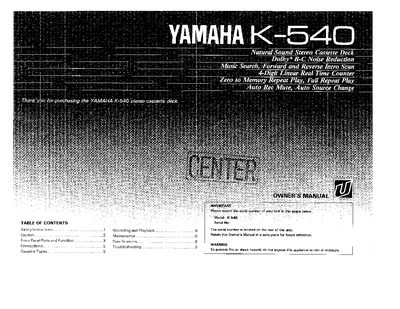

The Yamaha K-540 is a sophisticated stereo cassette deck featuring Dolby B-C noise reduction, Music Search with forward and reverse intro scan, and a 4-digit linear real-time counter. It supports various playback modes including Zero to Memory Repeat Play and Full Repeat Play.
The document details the front panel controls such as the EJECT button, MASTER FADER, LINEAR COUNTER, and operation buttons for INTRO SCAN, PLAY, FAST FORWARD, REWIND, and REC/PAUSE. It also explains rear panel connections and troubleshooting steps.
The serial number is located on the rear of the unit.
It plays back the beginning of the selection for about 15 seconds.
A 4-second blank interval is automatically recorded on the tape.
