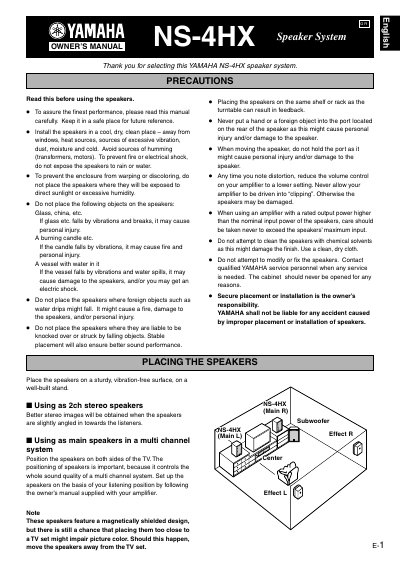

Yamaha NS-4HX Speaker System Owner's Manual

This is a speaker manual.

Brand: Yamaha
Document type: User Manual
Language: English
Pages: 5
File format: PDF
File size: 149 KB
Published: 02 July, 2012
Updated: 30 September, 2023
MD5 checksum: C754D1381F5E3FE6B9ADD1586A7C4A05
PDF: Yamaha NS-4HX Speaker System Owner's Manual PDF

About this manual

The Yamaha NS-4HX is a 2-way 3-speaker bass reflex speaker system featuring a magnetically shielded design. This manual outlines essential precautions regarding placement to ensure safety and optimal performance, including avoiding heat sources, moisture, and vibration. It also details how to position the speakers for stereo or multi-channel systems.

What's inside

Precautions
Placing the Speakers
Connections to Your Amplifier
Bi-wired connections
Removing the Front Cover
Specifications

Specifications

System Type	2-way 3-speaker bass reflex speaker system
Driver Configuration	13 cm (5") cone woofer x 2, 3 cm (1") dome tweeter
Impedance	6 ohms
Frequency Response	55 Hz to 50 kHz
Nominal Input Power	100 W
Maximum Input Power	300 W
Sensitivity	91 dB/2.83 V/m

Frequently asked questions

Can the speakers be connected in a bi-wired configuration?

Yes, the system is capable of bi-wired connections using two pairs of cables for each woofer and tweeter to decrease modulation distortion.

How should the speakers be positioned for stereo use?

For better stereo images, the speakers should be slightly angled in towards the listeners.

Can I remove the front cover of the speaker?

Yes, the front cover is fastened at four points and can be removed by holding both sides and pulling straight away from the speaker.

Download PDF (149 KB)
