This is a speaker manual, which contains information on how to use and install the speaker

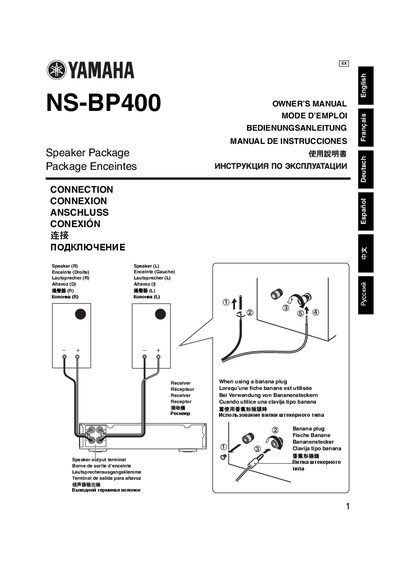

This document is the owner's manual for the Yamaha NS-BP400 speaker package. It details the precautions for placing the speakers, instructions for attaching the front covers and stands, and guidance on connecting the unit to a receiver. The manual includes a wiring diagram showing the connection of the left and right speakers to the receiver's speaker output terminals.
| System Type | 2-way bass-reflex speaker system |
|---|---|
| Shielding Type | Non-magnetic shielding |
| Woofer Size | 13 cm (5- 1/8") cone |
| Tweeter Size | 2.5 cm (1") soft dome |
| Frequency Response | 50 Hz to 30 kHz (-10 dB) |
| Dimensions | 6-15/16" x 12-3/16" x 13" |
| Weight | 5.9 kg (13 Ibs.) |
The package includes two speaker cables (2 m each) and two front covers.
Yes, you can use screw holes on the bottom of the NS-BP400 for installing speakers on commercially available stands.
Wipe the unit with a soft, dry cloth such as a Yamaha Unicon cloth; do not use chemical solvents like alcohol.
