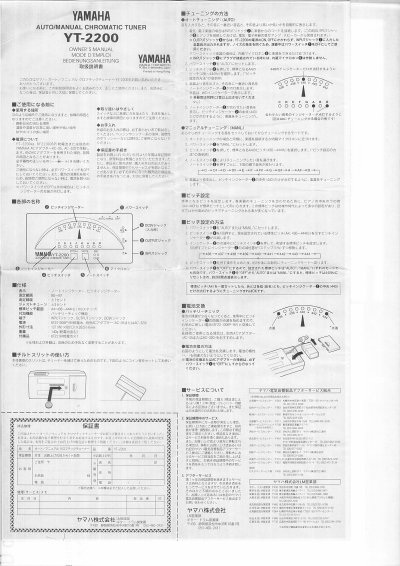

The Yamaha YT-2200 is an Auto/Manual Chromatic Tuner designed for tuning acoustic and electric instruments. It features a pitch indicator, a built-in microphone for acoustic instruments, and an input jack for electronic instruments. The device supports standard pitch settings ranging from A4=436Hz to A4=444Hz in 1Hz steps. This manual is written in Japanese.
| Measurement Range | B0-B7 |
|---|---|
| Measurement Accuracy | ±1 cent |
| Standard Pitch Range | A4=436-444Hz |
| Power Source | 6F22(006P) 9V Battery or AC Adapter |
| Dimensions | 127(W) X60(D) X28.5(H)mm |
| Weight | 140g (with batteries) |
The tuner operates on a 6F22 (006P) 9V dry battery or the optional Yamaha AC adapters AC-05 or AC-320.
Press the Pitch Switch once to blink the indicator, then press it again to set the desired pitch in 1Hz steps until the indicator stops blinking.
The measurement accuracy is ±1 cent.
