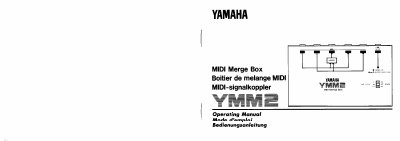

The Yamaha YMM2 MIDI Merge Box is designed to expand the versatility of MIDI music systems by combining two separate MIDI signals from IN 1 and IN 2 terminals into a single output signal at the OUT terminal. It also features THRU 1 and THRU 2 terminals to pass received signals through without modification.
The unit includes a MIDI clock filter to prevent conflicts when both input channels contain clock signals, selectable via the POWER ON/OFF switch. It is powered by an external PA-1 power adaptor and features a red LED indicator for power status and buffer overflow warnings.
| Dimensions | 190 mm x 36 mm x 112mm |
|---|---|
| Power Supply (US) | PA-1 AC adaptor, 120 VAC, 3W |
| Power Supply (Europe) | PA-1 AC adaptor, 220-240VAC, 3W |
The red LED marked POWER ON/BUFFER OVERFLOW will flash to indicate that a buffer overflow has occurred.
Use the POWER ON/OFF switch to select which channel's MIDI clock signal is merged into the output.
