This is a document about the RGX A2 control system's instruction manual. It includes content like adjusting string height, tuning, and selecting pickups.

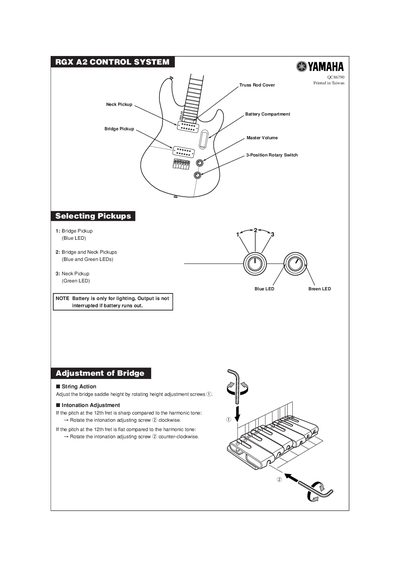

This document provides instructions for the Yamaha RGX A2 Control System, a device used for selecting guitar pickups. It details the function of the 3-position rotary switch and the corresponding Blue and Green LED indicators for Bridge, Neck, and Dual pickup configurations. A note clarifies that the battery is used solely for lighting and does not interrupt the audio output if depleted.
The guide also covers physical adjustments for the instrument bridge. It explains how to adjust string action and intonation by rotating specific screws. For intonation, it specifies rotating the screw clockwise if the pitch is sharp and counter-clockwise if flat, alongside instructions for adjusting saddle height.
| Battery Function | only for lighting |
|---|
The output is not interrupted even if the battery runs out.
Rotate the intonation adjusting screw clockwise.
