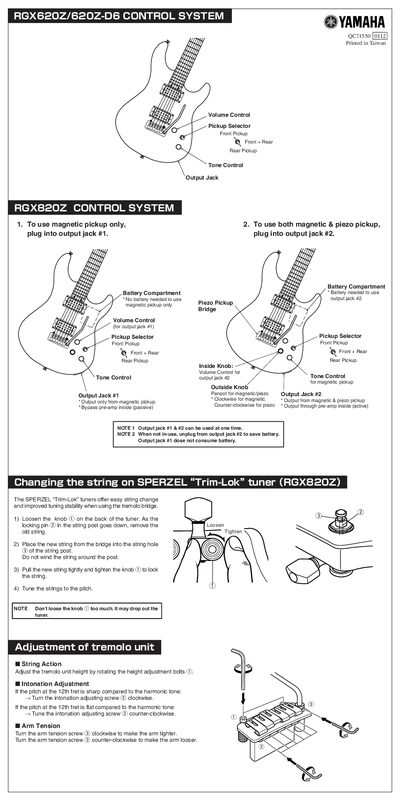

Yamaha RGX620Z/620Z-D6 Control System User Manual

About this manual

The document describes the Yamaha RGX620Z/620Z-D6 Control System, detailing its tone controls, output jacks, and pickup selector functions. It explains how to use Output Jack #1 for magnetic pickups only in passive mode and Output Jack #2 for both magnetic and piezo pickups in active mode.

What's inside

• Tone Control
• Output Jack Configuration
• Battery Compartment
• Pickup Selector
• Volume Control
• String Changing Instructions
• Tremolo Unit Adjustment

Frequently asked questions

How do I use the magnetic pickup only?

Plug into output jack #1. This bypasses the pre-amp inside and is passive.

Do I need a battery for Output Jack #1?

No, output jack #1 does not consume battery.
