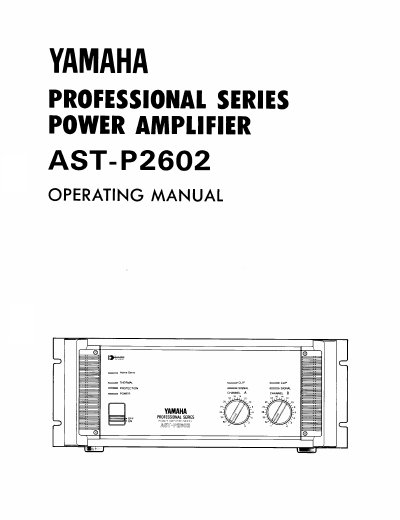

This document is the operating manual for the Yamaha AST-P2602 Professional Series power amplifier. It details the unit's features, including Active Servo Technology compatibility with systems like the AST-S30, and its capability to deliver 260W + 260W of continuous output power.
| Continuous output power (Normal) | 260W + 260W (8 ohms, 20Hz — 20kHz, THD 0.05%) |
|---|---|
| Continuous output power (Active Servo) | 250W + 250W (8 ohms, 20Hz —— 20kHz, THD 0.05%) |
| Total harmonic distortion | less than 0.01% |
| Dimensions | 480(W) x 184(H) x 433(D)mm |
| Weight | 23.6kg |
The surface temperature of the main radiator has risen beyond 70 degrees C, and measures must be taken to provide cooling.
After settings have been made, the supplied knob locks can be used to lock the attenuators in place.
This switch turns the ground line (pin 1; shield) of the XLR connector ON/OFF, which can break a ground loop and reduce hum.
