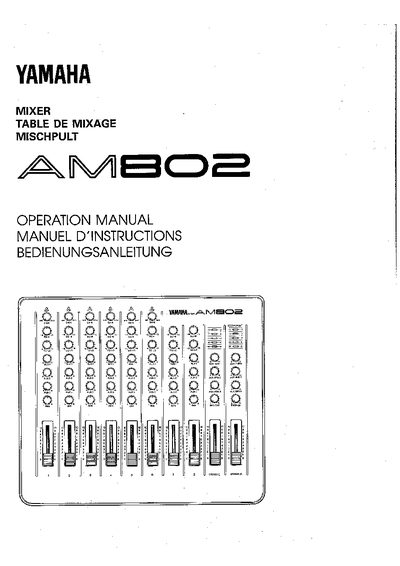

The Yamaha AM802 is a high-performance 8-in (2-out) mixer designed to deliver outstanding sonic performance and broad control versatility. This Operation Manual guides users through the controls and connectors of the unit.
Key features include input channels with MIC/LINE switches, gain controls, clip LEDs, EQ for low and high frequencies, three independent AUX mixing busses, and a PAN control for stereo positioning.
The HI and LO EQ controls have a control range of +15 dB.
You should reduce the GAIN control level or the source level to prevent overload distortion.
The LO EQ control functions at a frequency of 100 Hz.
