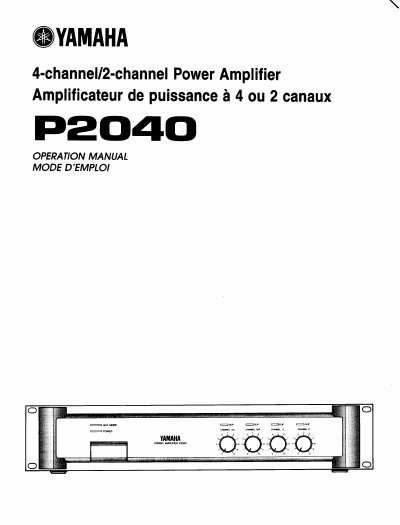

The Yamaha P2040 is a versatile power amplifier capable of operating in either 4-channel or 2-channel stereo modes. In 4-channel mode, it delivers up to 20 watts RMS per channel into 8-ohm loads, while in 2-channel mode, it provides 40 watts RMS per channel. The unit features independent level controls and clip-indicator LEDs for all channels to ensure precise balancing and protection against distortion.
| Power Output (4-Channel) | 20W x 4, RL=8 ohms |
|---|---|
| Power Output (2-Channel) | 40W x 2, RL=8 ohms |
| Frequency Response | 20 Hz—20 kHz |
| Input Impedance | > 20 k-ohms |
| Dimensions | 480 mm x 90 mm x 337 mm |
Flip the rear-panel switch to the 2CH position for stereo operation or the 4CH position for quad operation.
The minimum load impedance for each speaker output is 8 ohms.
It indicates clipping due to excessive signal levels, and the input signal level should be decreased.
