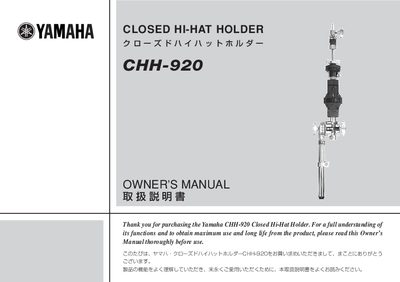

This document is the owner's manual for Yamaha CHH-920 closed hi-hat holder
The Yamaha CHH-920 is a closed hi-hat holder designed to attach to YAMAHA tom holders or double tom stands using a 22.2 mm mounting pipe. The unit features an open clamp for versatile setup options and includes position clamps to lock the desired angle during performances.
Assembly involves attaching the bottom cymbal support plate with a metal plate, rubber washer, felt, and wing nut, followed by securing the top cymbal via the hi-hat clutch mechanism. Users can adjust the cymbal span using a spring tension dial and fine-tune the sound feel by adjusting lock nuts on the felts.
The mounting pipe has a 22.2 mm diameter.
