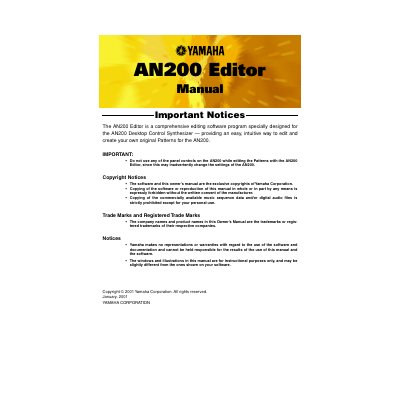

Yamaha AN200 Editor Owner's Manual

About this manual

The AN200 Editor is a full-featured editing software program designed for the AN200 Desktop Control Synthesizer. It provides an intuitive interface with virtual knobs, buttons, and an LCD display to edit parameters just like operating the hardware control panel.

Users can select patterns from Preset or User banks, initialize them to default settings, store edits as User patterns, and save data to floppy disks or hard drives as AN200 Files. The software also allows importing pattern data directly from the synthesizer.

What's inside

• About the AN200 Editor
• Selecting an AN200 Pattern
• Editing an AN200 Pattern
• Initializing an AN200 Pattern
• Storing an AN200 Pattern
• Saving data to an AN200 File
• Calling Up Data from an AN200 File
• Receive AN200 Bulk Dump Data

Specifications

Frequently asked questions

Can I use the panel controls while editing in the software?

No, you should not use any of the panel controls on the AN200 while editing Patterns with the AN200 Editor.

How do I save my edited pattern permanently?

You must first store the edited settings as a User pattern, then save that pattern to an AN200 File.

What happens if I select a different pattern without storing my edits?

All your edited parameters will be initialized to the default values of the newly selected pattern.
