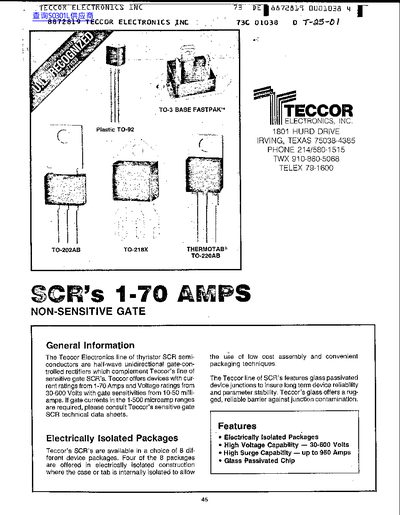

This document provides technical specifications for the Teccor Electronics line of thyristor SCR semi-conductors. These devices are half-wave unidirectional gate-controlled rectifiers designed to complement sensitive gate SCRs, offering current ratings ranging from 1 to 70 Amps and voltage ratings from 30 to 600 Volts.
| Current Ratings | 1-70 Amps |
|---|---|
| Voltage Ratings | 30-600 Volts |
| Gate Sensitivity | 10-50 milliamps |
| High Surge Capability | up to 950 Amps |
| Operating Temperature Range (TO-92) | -65°C to +125°C |
The operating temperature range (TJ) is -65°C to +125°C.
The lead solder temperature is a maximum of 230°C.
