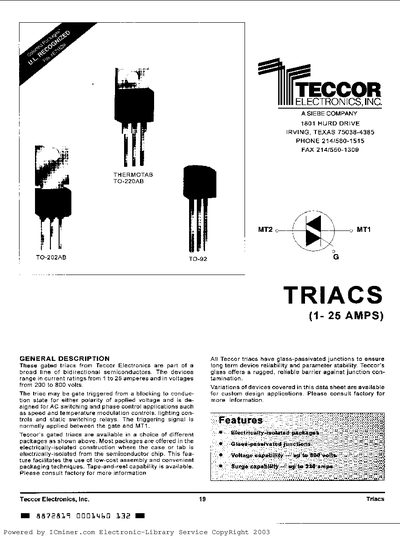

The document describes Teccor's gated triacs, which are bidirectional semiconductor devices used for AC switching and phase‑control applications. They are offered in current ratings from 1 A to 25 A and voltage ratings from 200 V to 800 V, with both isolated and non‑isolated package options.
Key electrical specifications include operating temperature ranges, storage limits, lead solder temperature limits, isolation ratings, and detailed gate‑trigger characteristics. Graphs and tables illustrate on‑state current versus voltage, case temperature limits, and surge current behavior.
| Current rating | 1 A to 25 A |
|---|---|
| Voltage rating | 200 V to 800 V |
| Operating temperature range | -65 °C to +125 °C (TO‑92) / -40 °C to +125 °C (others) |
| Storage temperature range | -65 °C to +150 °C (TO‑92) / -40 °C to +150 °C (TO‑202) / -40 °C to +125 °C (others) |
| Maximum lead solder temperature | 230 °C for 10 seconds |
| Isolation voltage (isolated packages) | ≥ 2500 VAC (RMS) from leads to mounting tab |
| Initial on‑state current | 200 mA (DC) for 1‑10 A devices, 400 mA (DC) for 15‑25 A devices |
Teccor triacs are available in current ratings from 1 A to 25 A.
The triacs support voltages from 200 V up to 800 V.
Lead solder temperature may not exceed 230 °C for 10 seconds.
Isolated packages can withstand at least 2500 VAC (RMS) from leads to the mounting tab.
