SIDACtor Device is a protection device produced by Teccor Electronics. It is used to protect various telecommunications equipment such as modems, line cards, fax machines, etc.
The SIDACtor devices are solid‑state protection components used in telecommunications equipment such as modems, line cards, fax machines, and other CPE. They help meet regulatory requirements like GR 1089, ITU K.20‑K.21, IEC 60950, UL 60950, and TIA/EIA‑IS‑968.

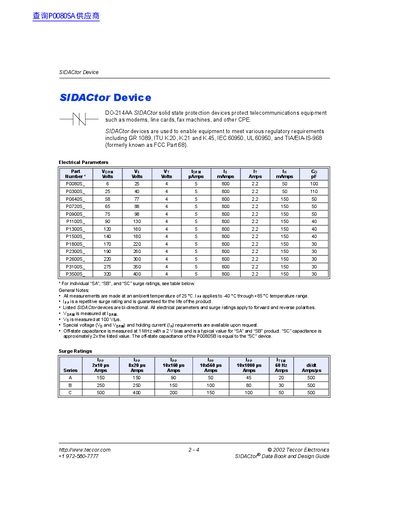

The guide includes detailed electrical parameters, surge ratings, and thermal considerations for the DO‑214AA package. Tables list voltage, current, capacitance, and surge‑rating values for each part number, along with notes on measurement conditions and temperature ranges.
| Off‑state capacitance measurement condition | 1 MHz with 2 V bias |
|---|---|
| Operating junction temperature range | -40 °C to +150 °C |
| Storage temperature range | -65 °C to +150 °C |
| Thermal resistance (junction‑to‑ambient) | 90 °C/W |
SIDACtor solid‑state protection devices protect telecommunications equipment such as modems, line cards, fax machines, and other CPE.
All measurements are made at an ambient temperature of 25 °C.
The operating junction temperature range is –40 °C to +150 °C.
