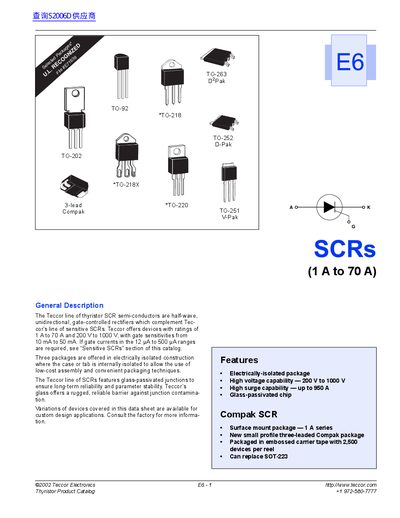

Teccor E6 is half-wave, unidirectional, gate-controlled rectifiers. The voltage rating is from 200V to 1000V, the current rating is from 1A to 70A.
The Teccor line of thyristor SCR semiconductors are half‑wave, unidirectional, gate‑controlled rectifiers offered in ratings from 1 A to 70 A and 200 V to 1000 V. Three electrically‑isolated packages (TO‑92, TO‑220, Compak) are available, featuring glass‑passivated junctions for long‑term reliability.
The catalog lists detailed electrical specifications, including surge capability up to 950 A, operating temperature ranges, thermal resistance values for each package, and isolation ratings. Test conditions, package dimensions, and typical performance curves are provided for design engineers.
| Continuous current rating | 1 A to 70 A |
|---|---|
| Voltage rating | 200 V to 1000 V |
| Surge capability | up to 950 A |
| Operating temperature (TO‑92) | -65 °C to +125 °C |
Teccor SCRs are available with continuous current ratings from 1 A up to 70 A.
The SCRs are rated for voltages between 200 V and 1000 V.
They can handle surge currents up to 950 A.
For TO‑92 packages the allowable operating temperature is –65 °C to +125 °C.
