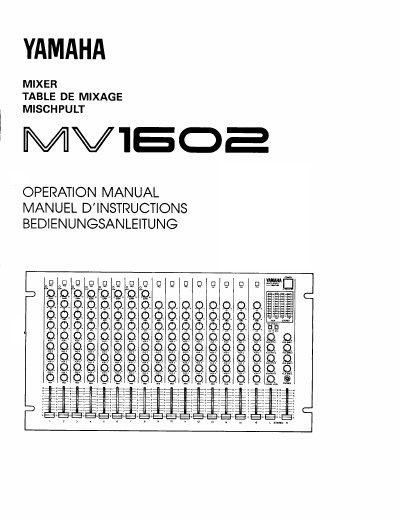

This document is the operation manual for the Yamaha MV1602, a versatile 19-inch rack-mountable mixer featuring 16 input channels. It includes 3-band EQ on each channel, microphone-level input capability on channels 1 through 8, and true stereo channels on 15 and 16. The manual guides users through the various features such as auxiliary submixes, master auxiliary sends, and stereo master program busses.
| Input Channels | 16 |
|---|---|
| EQ Bands | 3-band |
| Microphone Input | Channels 1 through 8 |
| Stereo Channels | Channels 15 and 16 |
| Auxiliary Submixes | Four |
| Peak Level Meters | 10-element LED |
Its fader should be set to the lowest position to prevent unwanted noise from being added to the main program signal.
The MV1602 is designed for a standard 19-inch rack.
The mixer features sixteen input channels.
Channels one through eight have microphone-level input capability.
