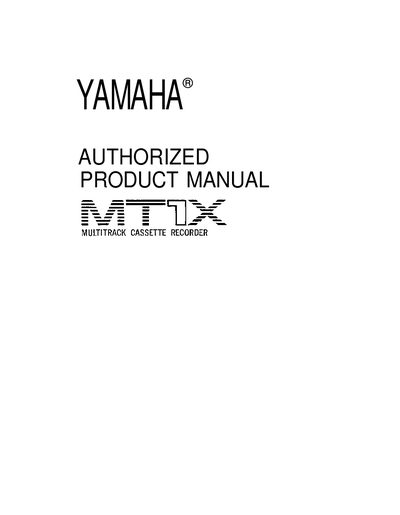

Yamaha MT1X Multitrack Cassette Recorder Operating Manual

About this manual

This document is the official operating manual for the Yamaha MT1X Multitrack Cassette Recorder. It explains how to use the unit as a multitrack recorder with a built-in recording mixer, as well as for PA mixing and video soundtrack editing. The manual details the difference between tracks and channels and describes the functions of the mixer, recorder, meter/monitor, and connector sections.

What's inside

• Before Operation
• The Difference Between Tracks and Channels
• The Controls and Their Functions
• Mixer Section
• Recorder Section
• Meter and Monitor Section
• Connector Section
• Multitrack Recording Techniques
• Maintenance
• Specifications

Frequently asked questions

What type of cassette tape should be used with the MT1X?

The unit is designed to work only with Chrome-position tape, specifically CrO2 tape set to a bias of HIGH and an EQ of 70us.

What happens if C-120 tapes are used in the recorder?

The use of C-120 tapes is not recommended because they exhibit poorer performance and can cause equipment failure.

How should the dbx switch be set when playing back recorded tapes?

Set the dbx switch ON for tapes recorded with dbx on, and keep it OFF for tapes recorded without dbx.
