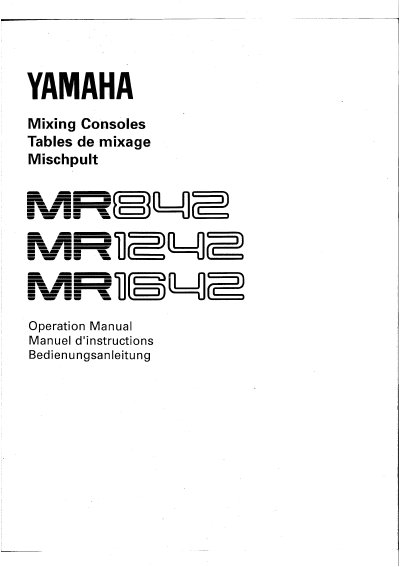

The Yamaha MR-series mixing consoles offer quality design and versatile signal routing for recording and sound reinforcement applications. The MR842, MR1242, and MR1642 models provide 8, 12, and 16 input channels respectively, featuring electronically balanced inputs with XLR and TRS connectors. Each channel includes a three-band equalizer, insert point, and three auxiliary sends.
| Input Channels | 8, 12, and 16 |
|---|---|
| Input Connectors | XLR and TRS phone jack |
| Equalizer Type | Three-band |
| Auxiliary Sends | Three per channel |
The TAPE switch determines whether the input signal is received via the rear-panel LO-Z or HI-Z input connector or the TAPE input jack.
The PAD switch attenuates the signal applied to the corresponding rear-panel HI-Z or LO-Z input by 20 dB prior to the head amplifier and input gain control.
The GAIN control adjusts input sensitivity between -60 dB (0.775 mV) and -20 dB (77.5 mV) when the PAD switch is OFF.
