The CPC7583 is a solid state switch for use in telephone line cards, replacing three 2-Form-C electromechanical relays, providing switching control, eliminating the need for zero cross switching, providing overcurrent protection, and intelligent battery monitoring.

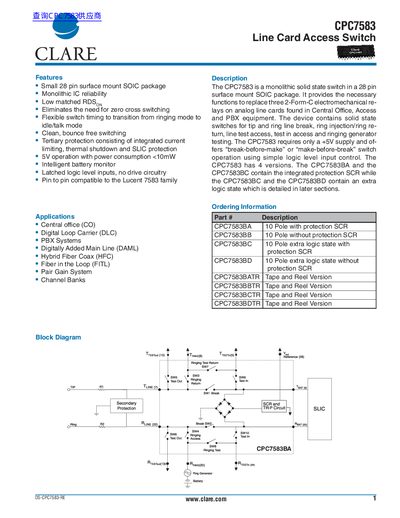

The CLARE CPC7583 is a monolithic solid-state switch designed to replace electromechanical relays on analog line cards found in Central Office (CO), Digital Loop Carrier (DLC), and PBX equipment. It provides functions such as tip/ring line break, ring injection/return, line test access, and ringing generator testing within a small 28-pin surface mount SOIC package.
| Package Type | 28 pin surface mount SOIC package |
|---|---|
| Operating Temperature Range | -40 to +110 °C |
| Supply Voltage | +5V (Min 4.5V, Max 5.5V) |
| Battery Supply Range | -85 to -72 V |
| Logic Input Voltage | Max 7 V |
| Switch Isolation (SW1, SW2) | 330 V |
No, it features latched logic level inputs and requires no drive circuitry.
The SV operation has a power consumption of less than 10mW.
