XAA170 is a 350V, 100mA, 50Ω 2-Form-A relay. It provides an economical solution in applications that are cost driven and component count needs to be minimized.

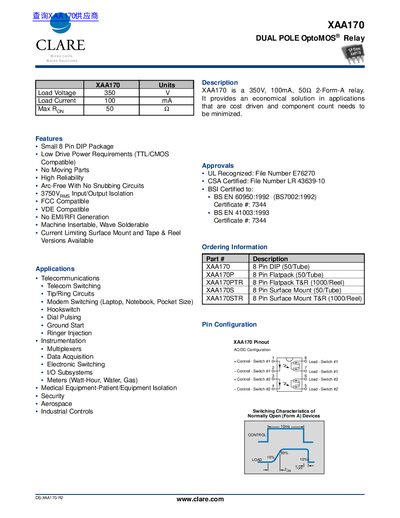

The document describes the CLARE XAA170, a 350V, 100mA dual pole Form-A relay designed with low drive power requirements compatible with TTL/CMOS logic. Key features include high reliability, arc-free operation without snubbing circuits, and excellent isolation ratings of 3750Vrms between input and output.
| Load Voltage (Peak) | 350 V |
|---|---|
| Load Current (Continuous) | 100 mA |
| Operating Temperature Range | -40 to +85 °C |
| Turn-On Time (Typical) | 5 ms |
The continuous AC/DC load current is rated at 100 mA.
Yes, it has low drive power requirements and is compatible with both.
No, the relay provides arc-free switching without the need for snubbing circuits.
