LOC110 is a linear optocoupler from Clare company, which can be used in telecom, medical and power supply isolation circuits. It has 8-pin DIP, surface mount or flat pack packages available.
The document describes the CLARE LOC110, a linear optocoupler designed for use in telecommunications, medical, and power supply isolation circuits. It supports both analog and digital signal coupling with high gain stability and low input/output capacitance.

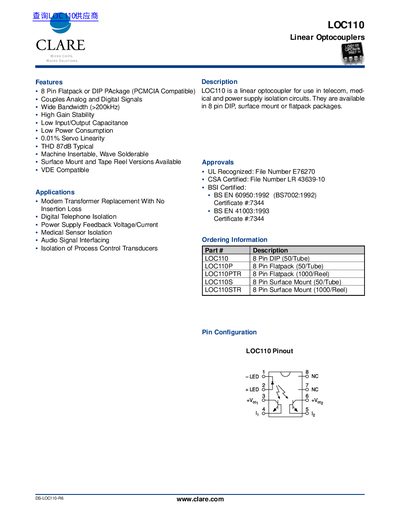

The datasheet provides comprehensive technical data including absolute maximum ratings, electrical characteristics such as servo gain (K3) and transfer gain linearity, frequency response, and common mode rejection ratio. It also includes mechanical dimensions for 8-pin DIP, flatpack, and surface mount packages, along with tape and reel packaging specifications.
| Wide Bandwidth (Photoconductive) | >200kHz |
|---|---|
| Servo Linearity | 0.01% |
| Total Harmonic Distortion (THD) | -87dB Typical |
| Operational Temperature Range | -40 +85 °C |
| Forward LED Current (Max) | 100 mA |
| Dark Current (Typical) | 25 nA |
The device is available in 8 pin DIP, surface mount, or flatpack packages.
Yes, it is offered in an 8 Pin Flatpack package that is PCMCIA Compatible.
