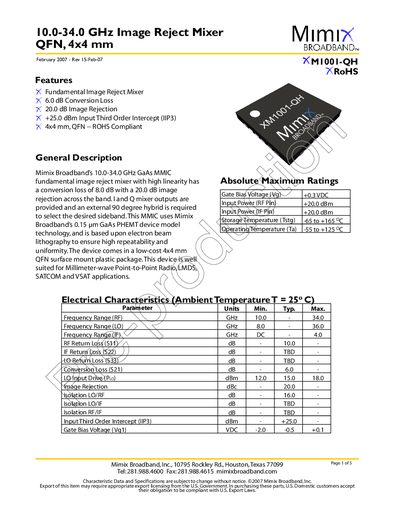

10.0-34.0 GHz GaAs MMIC fundamental image reject mixer with high linearity has a conversion loss of 8.0 dB with a 20.0 dB image rejection across the band. I and Q mixer outputs are provided and an external 90 degree hybrid is required to select the desired sideband. This MMIC uses Mimix Broadband’s 0.15 µm GaAs PHEMT device model technology, and is based upon electron beam lithography to ensure high repeatability and uniformity. The device comes in a low-cost 4x4 mm QFN surface mount plastic package. This device is well suited for Millimeter-wave Point-to-Point Radio, LMDS, SATCOM and VSAT applications.
The document describes the Mimix Broadband XM1001-QH, a broadband GaAs MMIC fundamental image reject mixer designed for millimeter-wave applications such as Point-to-Point Radio, LMDS, SATCOM, and VSAT. The device features a conversion loss of 6.0 dB, 20.0 dB image rejection, and an input third-order intercept (IIP3) of +25.0 dBm.
| Frequency Range (RF) | 10.0 to 34.0 GHz |
|---|---|
| Frequency Range (LO) | 8.0 to 36.0 GHz |
| Conversion Loss | 6.0 dB |
| Image Rejection | 20.0 dBc |
| Input Third Order Intercept (IIP3) | +25.0 dBm |
| Operating Temperature | -55 to +125 °C |
The device operates from -55 to +125 °C.
The device can be stored between -65 and +165 °C.
The absolute maximum rating for both RF and IF input power is +20.0 dBm.
