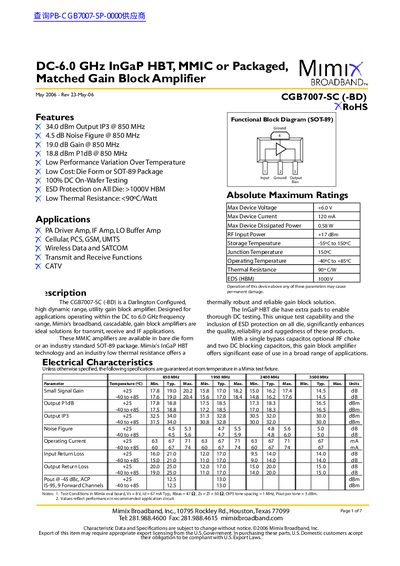

This document introduces the features and characteristics of the CGB7007-SC (-BD), a Darlington configured, high dynamic range, utility gain block amplifier.
The CGB7007‑SC (-BD) is a Darlington‑configured, broadband gain block amplifier covering DC to 6.0 GHz. It is designed for cellular, PCS, GSM, UMTS, wireless data, SATCOM, and other transmit/receive applications, offering high gain, low noise, and robust ESD protection.
The datasheet lists key electrical characteristics such as 19 dB gain at 850 MHz, 4.5 dB noise figure, 18.8 dBm P1dB, and 34 dBm output IP3. Physical details include SOT‑89 and bare‑die package options, dimensions, and recommended biasing circuits, along with full ordering part numbers.
| Frequency Range | DC‑6.0 GHz |
|---|---|
| Small Signal Gain (850 MHz) | 19.0 dB |
| Noise Figure (850 MHz) | 4.5 dB |
| Output P1dB (850 MHz) | 18.8 dBm |
| Output IP3 (850 MHz) | 34.0 dBm |
| Maximum Voltage | +6.0 V |
| Maximum Current | 120 mA |
| Maximum Power Dissipation | 0.58 W |
| Operating Temperature Range | -55 °C to 150 °C |
The amplifier provides 19.0 dB of gain at 850 MHz.
The device is rated for a maximum voltage of +6.0 V.
