This is the user manual for an electronic drum

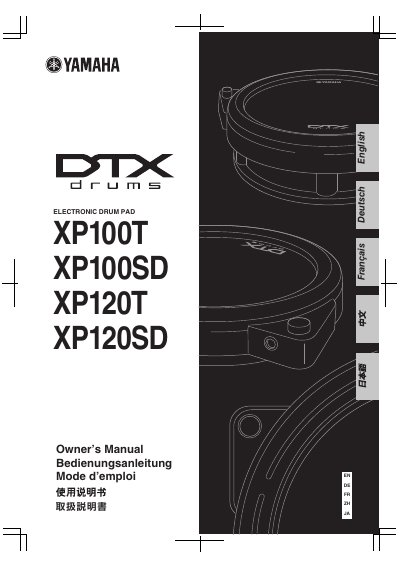

This Owner's Manual covers the Yamaha XP100T, XP100SD, XP120T, and XP120SD electronic drum pads. It details package contents, physical specifications, and safety precautions for handling and cleaning the instrument. The document explains how to mount the pads on stands and connect them to a DTX Series Drum Trigger Module using the supplied stereo phone cable.
| XP100T Tom Pad Size | 290 x 80 (H) mm |
|---|---|
| XP100T Weight | 2.3 kg |
| XP120SD Snare Pad Size | 340 x 85 (H) mm |
| XP120SD Weight | 3.1 kg |
| Sensor System | Trigger sensor (piezo) x 1, rim switch (2 zones) x1 |
| Output jack | Standard stereo phone jack |
Always use the supplied stereo phone cable (parallel type). Using a mono phone cable may prevent rim switch voices from being produced.
Rotate the level adjustment knob to the right to increase the output level or to the left to decrease it.
Double triggering is often caused by the output level being set too high, which sustains the signal for too long.
