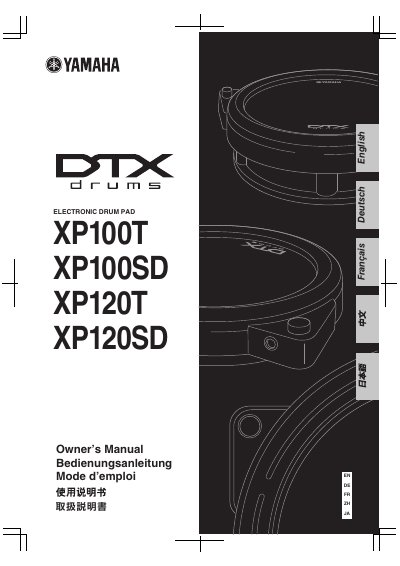

This document is the owner's manual for XP100T XP100SD XP120T XP120SD electronic drum pads, which provides basic precautions and safe usage instructions for the products.
This Owner's Manual provides instructions for the Yamaha XP100T, XP100SD, XP120T, and XP120SD electronic drum pads. It details package contents, physical specifications, and safety precautions for handling and cleaning the instrument. The guide explains how to mount the pads on stands and connect them to a compatible DTX Series Drum Trigger Module using the supplied stereo phone cable.
| XP100T Size | 290 x 80 (H) mm |
|---|---|
| XP100T Weight | 2.3 kg |
| XP120T Size | 340 x 82 (H) mm |
| XP120T Weight | 3.0 kg |
| Sensor System | Trigger sensor (piezo) x 1, rim switch (2 zones) x1 |
| Output jack | Standard stereo phone jack |
Always use the supplied stereo phone cable (parallel type) to ensure proper function of pad control functions.
This double triggering occurs if the output level is set too high, causing the signal to sustain for too long.
Rotate the level adjustment knob to the right to increase the level or to the left to decrease it.
