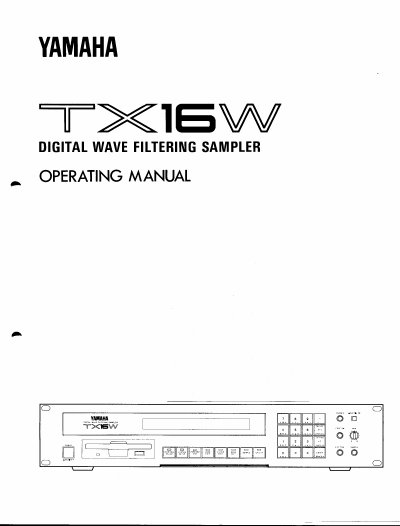

The Yamaha TX16W is a rack-mountable 16-voice multi-timbral sampler featuring realtime-variable digital filters. It supports up to 16 different voices, each on its own MIDI channel, and includes 32 key splits per voice with individual filter, EG, and LFO controls.
The instrument offers 1.5 Mbytes of sampling memory, expandable to 6 Mbytes via EMM15 Expansion Memory Modules. It features stereo sampling at 33.3 kHz and mono sampling options up to 50.0 kHz with 12-bit resolution. Data storage is handled by a 3.5-inch floppy disk drive.
| Polyphony | Up to 16 note polyphony |
|---|---|
| Voices | Up to 16 different voices |
| Key Splits | 32 key splits for each voice |
| Sampling Memory | 1.5 Mbytes (expandable to 6 Mbytes) |
| Sampling Resolution | 12-bit sampling resolution |
| Storage Media | 3.5-inch floppy disk drive |
The TX16W supports up to 16 note polyphony.
The unit has 1.5 Mbytes of sampling memory, which can be expanded to 6 Mbytes.
The TX16W supports stereo sampling at 33.3 kHz and mono sampling at 16.7 kHz, 33.3 kHz, and 50.0 kHz.
