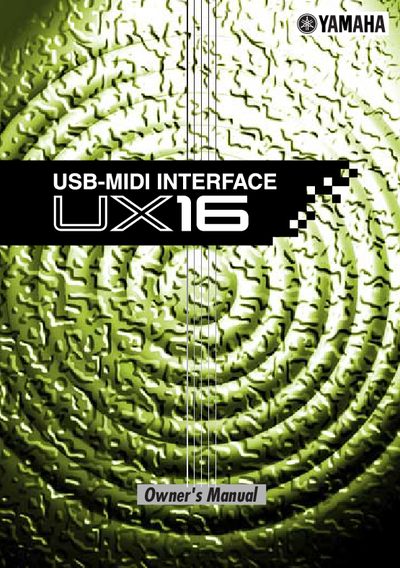

Yamaha UX16 USB-MIDI Interface Owner's Manual

This manual describes the product's usage instructions

Brand: Yamaha
Category: Other Electronics
Document type: User Manual
Language: English
Pages: 26
File format: PDF
File size: 601 KB
Published: 12 June, 2012
Updated: 30 September, 2023
Model: UX16
MD5 checksum: CA38EBC986A26A8934466D070857F6B2
PDF: Yamaha UX16 USB-MIDI Interface Owner's Manual PDF

About this manual

The Yamaha UX16 is a USB-MIDI interface designed for digital music production, featuring simultaneous playback of up to 16 channels. It supports both Windows and Macintosh operating systems and operates using USB bus power without requiring an external adapter. The device includes indicators for USB and MIDI IN/OUT status to verify operation.

What's inside

UX16 Features
Package Contents
Parts and Functions
Installing the Driver
Connections
Changing the driver setting
Uninstalling the USB-MIDI Driver
System Requirements
Specifications
Troubleshooting

Specifications

Channel Playback	16 channel simultaneous playback
Power Source	USB bus power
Operating Systems	Windows 2000/XP/Vista, Mac OS X 10.4 through 10.5

Frequently asked questions

Can I connect and disconnect the cable while the computer is on?

Yes, you can connect and disconnect the USB cable while the power to the computer is on.

Does the UX16 require an external power adapter?

No, the UX16 operates on USB bus power and does not require a power adaptor.

How many units can be connected to expand the system?

You can connect multiple units using a USB hub, with a maximum of 16 units depending on the system.
