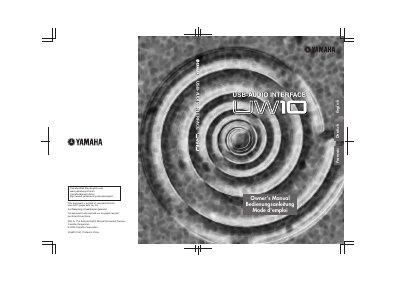

Yamaha UW10 USB Audio Interface Owner's Manual

About this manual

The Yamaha UW10 is a USB audio interface designed to enable simultaneous transfer of audio data between analog sources like MDs and cassette tapes and a computer. It features digital and analog interfaces that convert incoming signals into digital format to prevent audio deterioration caused by computer noise.

The device supports an easy hot-swap connection, allowing users to connect or disconnect the USB cable while the computer is powered on without requiring a separate power adapter. The manual details how to install drivers for Windows 98/Me/2000/XP and use included software such as TWEplus Wave Editor and SoftSynthesizer.

What's inside

• UW10 Features
• Notes on USB
• Package Contents
• System Requirements
• Parts and Functions
• Signal Flow
• Connections
• Installing the driver
• Using the UW10
• Specifications

Frequently asked questions

Does the UW10 require a separate power adapter to operate?

No, the UW10 does not require a power adapter because it receives power through the USB bus supply.

What software is included with the UW10 for editing audio files?

The package includes a program called TWEplus Wave Editor that allows you to record and edit various wave files.

Which operating systems are supported by the UW10?

The UW10 supports Windows 98, Me, 2000, and XP.
