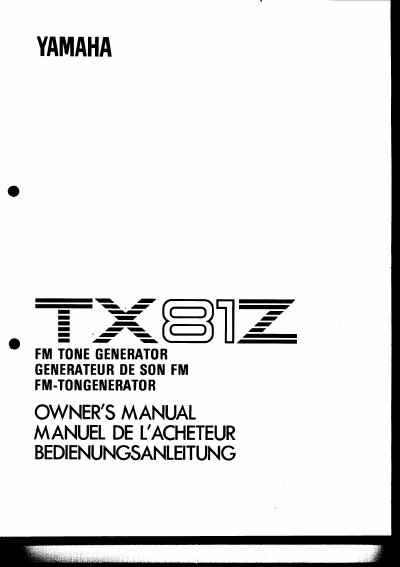

Yamaha TX81Z FM Tone Generator Owner's Manual

About this manual

The Yamaha TX81Z is an 8-note polyphonic FM tone generator designed to act as up to 8 independent instruments. It features 128 factory preset voices and allows users to create and store their own voices and performances. The unit includes a new LSI tone generator chip capable of FM synthesis using 8 different waveforms and supports pseudo-reverb effects.

What's inside

• Introduction
• Features
• Simple Playing Instructions
• Connections
• Select Voices
• How Does the TX81Z Work
• Front/Rear Panel
• Performance Memory
• MIDI Reception/Transmission
• Specifications

Specifications

Frequently asked questions

Is a computer required to program the TX81Z?

No, voices and all memory parameters can be edited from the front panel.

Can the TX81Z save data to a cassette?

Yes, it can save and load memory data to and from a cassette.

Is the TX81Z compatible with DX21/27 voice data?

Yes, voice and function data is compatible with DX21/27/27S/100 voice data.
