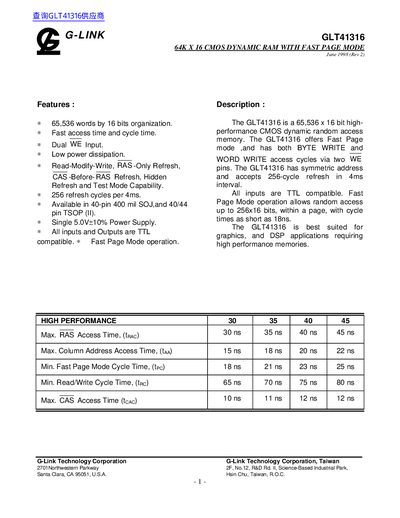

The G-LINK GLT41316 is a 65,536 x 16 bit high-performance CMOS dynamic random access memory. The GLT41316 offers Fast Page mode and has both BYTE WRITE and WORD WRITE access cycles via two WE pins. The GLT41316 has symmetric address and accepts 256-cycle refresh in 4ms interval. All inputs are TTL compatible. Fast Page Mode operation allows random access up to 256x16 bits, within a page, with cycle times as short as 18ns. The GLT41316 is best suited for graphics, and DSP applications requiring high performance memories.
The document describes the G-LINK GLT41316, a 64K x 16 CMOS Dynamic Random Access Memory (DRAM) designed for high-performance applications such as graphics and DSP. It features Fast Page Mode operation allowing random access up to 256x16 bits within a page with cycle times as short as 18ns.
| Organization | 65,536 words by 16 bits |
|---|---|
| Power Supply Voltage | Single 5.0V+10% |
| Min. Fast Page Mode Cycle Time (30ns) | 18 ns |
The device can operate at ambient temperatures up to +150°C.
The memory requires 256 refresh cycles every 4ms.
Fast Page Mode operation achieves cycle times as short as 18ns.
