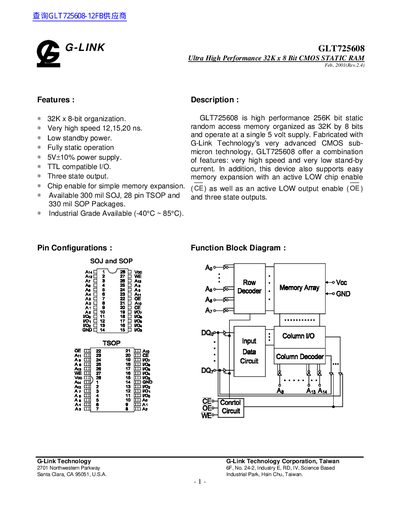

GLT725608 is a high-performance 256K-bit static random access memory organized as 32K by 8 bits and operates at a single 5-volt supply. Fabricated with G-Link Technology's very advanced CMOS sub-micron technology, GLT725608 offers a combination of features: very high speed and very low stand-by current. In addition, this device also supports easy memory expansion with an active LOW chip enable (CE) as well as an active LOW output enable (OE) and three state outputs.
The G-LINK GLT725608 is a high-performance static random access memory (SRAM) organized as 32K by 8 bits. Fabricated with advanced CMOS sub-micron technology, it operates at a single 5-volt supply and offers very high speed options of 12, 15, or 20 nanoseconds along with low standby power consumption.
The device supports easy memory expansion through an active LOW chip enable (CE) and output enable (OE), featuring three-state outputs. It is available in various packages including SOJ, TSOP, and SOP, with options for commercial and industrial temperature ranges.
| Organization | 32K x 8-bit |
|---|---|
| Operating Speeds | 12, 15, or 20 ns |
| Power Supply Voltage | 5V + 10% |
| Operating Temperature (Industrial) | -40°C to 85°C |
| Max Input Voltage | 7.0V |
The device is available in very high speed options of 12, 15, or 20 nanoseconds.
It is available in 300 mil SOJ, 28 pin TSOP, and 330 mil SOP packages.
Yes, the device is available in Industrial Grade with a temperature range of -40°C to 85°C.
