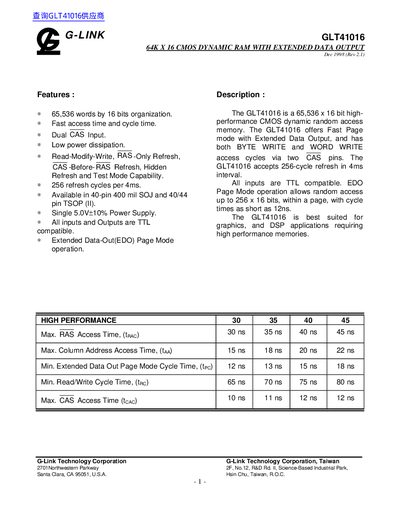

GLT41016 64K X 16 CMOS DYNAMIC RAM WITH EXTENDED DATA OUTPUT is a high-performance CMOS dynamic random access memory released by G-Link Technology Corporation. It features 65,536 words x 16 bits organization, fast access time and cycle time, dual CAS input, low power dissipation, read-modify-write, RAS-Only Refresh, CAS-Before-RAS Refresh, Hidden Refresh and Test Mode Capability, 256 refresh cycles per 4ms, single 5.0V±10% power supply, all inputs and outputs are TTL compatible and Extended Data-Out(EDO) Page Mode operation.
The GLT41016 is a 64K x 16 bit CMOS dynamic RAM with extended data output, designed for high-performance applications like graphics and DSP. It supports EDO page mode for faster access and includes features like dual CAS input, low power dissipation, and multiple refresh modes. The device operates on a single 5.0V power supply and is available in 40-pin SOJ and TSOP packages.
Technical specifications include access times down to 30ns, with cycle times as short as 12ns in EDO mode. The datasheet details pin configurations, truth tables, electrical characteristics, and AC performance parameters for various operating conditions.
| Organization | 64K x 16 bits |
|---|---|
| Access Time | 30 ns to 45 ns |
| Column Address Access Time | 15 ns to 22 ns |
| Extended Data Out Page Mode Cycle Time | 12 ns to 18 ns |
| Power Supply | Single 5.0V ±10% |
The maximum RAS access time is 45 ns.
The minimum cycle time in EDO page mode is 12 ns.
The GLT41016 requires a single 5.0V ±10% power supply.
