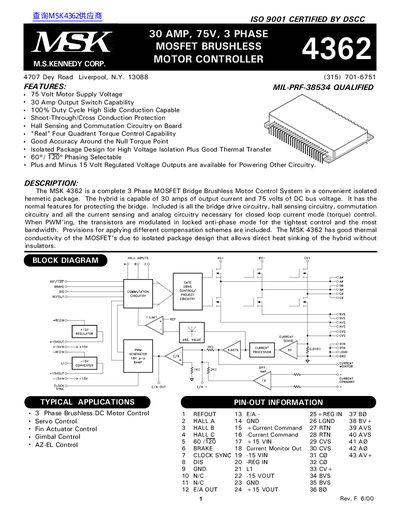

The MSK 4362 is a complete 3-phase MOSFET bridge brushless motor control system housed in a convenient isolated hermetic package. It is capable of 30 amps of output current and 75 volts of DC bus voltage, featuring hall sensing and commutation circuitry on board for closed-loop current mode control.
| Output Switch Capability | 30 Amp |
|---|---|
| Motor Supply Voltage | 75 Volt |
| Continuous Output Current | 30 Amps |
| Peak Output Current | 41 Amps |
| Thermal Resistance (Output Switches) | 1.5°C/W |
| Thermal Resistance (Regulator) | 9°C/W |
| Storage Temperature Range | -65°C to +150°C |
| Case Operating Temperature | -55°C to +125°C |
| Junction Temperature | +150°C |
The continuous output current is 30 Amps, with a peak output current of 41 Amps.
The maximum motor supply voltage is 75 volts.
Yes, it includes hall sensing and commutation circuitry on board.
The controller is capable of 100% duty cycle high side conduction.
