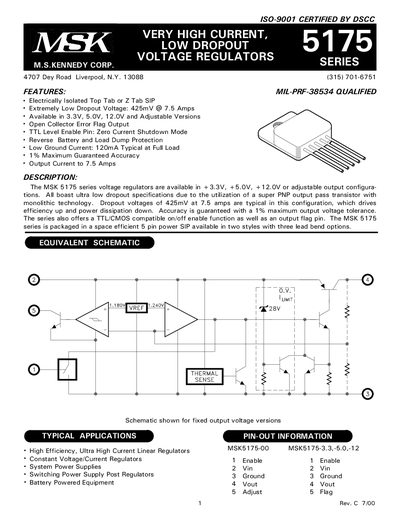

The MSK 5175 series voltage regulators deliver up to 7.5 A of output current with an extremely low dropout voltage of 425 mV. They are available in fixed 3.3 V, 5 V, 12 V versions and an adjustable version, and feature TTL‑level enable, open‑collector flag output, reverse‑battery and load‑dump protection, and low ground current.
The datasheet lists absolute maximum ratings, detailed electrical specifications, application notes on protection, output capacitor selection, load connections, and thermal management. Mechanical dimensions, package styles, and ordering information are also provided.
| Dropout Voltage | 425 mV @ 7.5 A |
|---|---|
| Maximum Output Current | 7.5 A |
| Low Ground Current | 120 mA typical at full load |
| Enable Pin | TTL Level, Zero Current Shutdown Mode |
The typical dropout voltage is 425 mV at a 7.5 A load.
A minimum of 33 µF is recommended for the output capacitor.
The absolute maximum allowable junction temperature is 125 °C.
