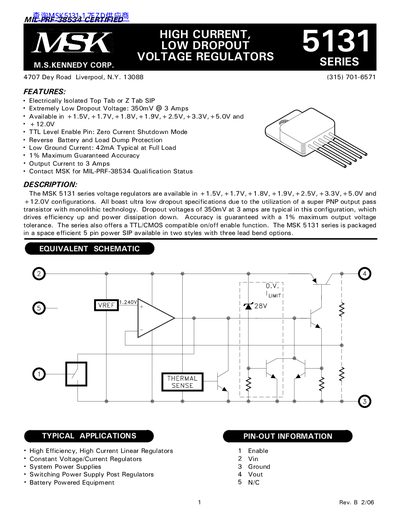

M.S. Kennedy MSK 5131 Voltage Regulator Datasheet

The document introduces the MSK 5131 series voltage regulators, which feature ultra low dropout voltage, high efficiency and high current. The series can be used in system power supplies, switching power supply post regulators, battery powered equipment etc.

Brand: MSK
Category: Power Management
Document type: Datasheet
Language: English
Pages: 5
File format: PDF
File size: 263 KB
Published: 05 June, 2012
Updated: 30 September, 2023
MD5 checksum: 514F2221153D79273A7006FB3A996491
PDF: M.S. Kennedy MSK 5131 Voltage Regulator Datasheet PDF

About this manual

The document describes the MSK 5131 series of voltage regulators manufactured by M.S. Kennedy Corp. These devices feature ultra-low dropout specifications (350mV at 3 Amps) and are packaged in a 5-pin power SIP format. The series offers multiple output voltages including +1.5V through +12.0V.

What's inside

Features
Description
Absolute Maximum Ratings
Electrical Specifications
Application Notes
Typical Performance Curves
Mechanical Specifications
Ordering Information

Specifications

Dropout Voltage (3A)	350mV typical
Output Current	3 Amps
Ground Current (Full Load)	42mA typical
Output Voltage Tolerance	1% maximum
Operating Temperature (Series)	-40°C to +85°C

Frequently asked questions

What is the minimum recommended output capacitor value?

A minimum of 10uF is recommended for optimum performance.

Is the enable pin TTL compatible?

Yes, it features a TTL Level Enable Pin that allows for zero current shutdown mode.

Download PDF (263 KB)
