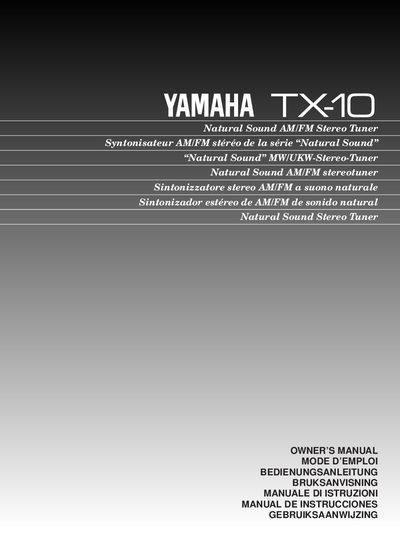

Yamaha TX-10 Stereo Tuner Owner's Manual

About this manual

This document is the Owner's Manual for the Yamaha TX-10 Natural Sound AM/FM Stereo Tuner. It details the supplied accessories, including indoor FM and AM loop antennas, and provides safety cautions regarding installation and power usage. The manual includes specific instructions for setting the voltage selector and frequency step switch for different regions.

What's inside

• Supplied Accessories
• Caution
• Connections
• Tuning Operations
• Preset Tuning
• Receiving RDS Stations
• Troubleshooting
• Specifications

Specifications

Frequently asked questions

What should I do if I am not using the unit for a long period?

Disconnect the AC power plug from the wall outlet.

What is the minimum distance required between the antenna and reinforced concrete walls or metal structures?

The antenna must be at least two meters (6.6 feet) from reinforced concrete walls or metal structures.

What happens to the audio mode when an FM station is tuned manually?

If you tune to an FM station manually, it is received in monaural mode automatically to increase the signal quality.

How long does the unit take to receive PS data before displaying the station name instead of the frequency?

The unit replaces the frequency with the station name, but if PS data cannot be received within 5 seconds, it flashes 'NO PS' and returns to the frequency display.
