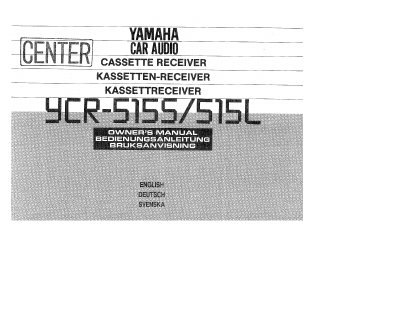

This document serves as the user manual for the Yamaha YCR-5155 and YCR-515L car cassette receivers. It covers essential precautions, unpacking procedures, and detailed installation steps including mounting the unit in the dashboard and securing it with the provided chassis strap or plastic bushing.
The guide details how to connect the receiver to the vehicle's electrical system, speakers, and optional CD players, specifying wire colors and terminal locations. It also explains the operation of various controls, including the SEL-PUSH switch for mode selection, continuously variable loudness, and the YMS (Yamaha Music Search) function.
| Power output (1 kHz, 4 ohms) | 20W (1 channel driven) x 4 |
|---|---|
| Tuning Range (FM) | 87.5 — 108.0 MHz (50 kHz step) |
| Operating Voltage | DC 14.4V (negative ground) |
| Dimensions (W x H x D) | 188 x 58.5 x 185.1 mm |
| Weight | 1.8 kg |
Yamaha does not recommend the use of 120-minute cassettes because their extremely thin tapes are susceptible to entanglement in the tape transport.
After connecting the unit, be sure to press the <4 and > buttons simultaneously to initialize the unit.
If the car's power supply is interrupted, the preset memories may be cleared and must be reprogrammed.
