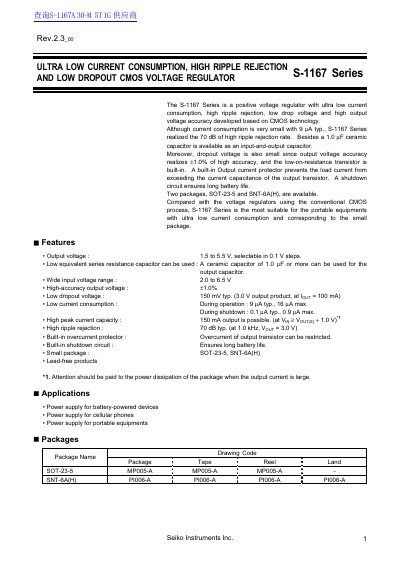

This data sheet describes the features and characteristics of the S-1167 series of ultra-low current, high ripple rejection and low dropout CMOS voltage regulators. The series is based on CMOS technology and features ultra-low current consumption (9µA typical), high ripple rejection (70dB), low dropout voltage (150mV typical (3.0V output product, IOUT = 100mA)) and high output voltage accuracy (±1.0%).
The S-1167 Series is a positive voltage regulator developed based on CMOS technology, featuring ultra-low current consumption (9 µA typical) and high ripple rejection (70 dB typical). It offers an output voltage range of 1.5 V to 5.5 V in selectable steps of 0.1 V and supports both SOT-23-5 and SNT-6A(H) packages.
| Output voltage range | 1.5 to 5.5 V |
|---|---|
| Input voltage range | 2.0 to 6.5 V |
| Current consumption (typical) | 9 µA |
| Ripple rejection | 70 dB typical |
| Output voltage accuracy | ±1.0% |
| Dropout voltage (typical) | 150 mV |
The series is available in two packages: SOT-23-5 and SNT-6A(H).
The typical current consumption during operation is 9 µA.
