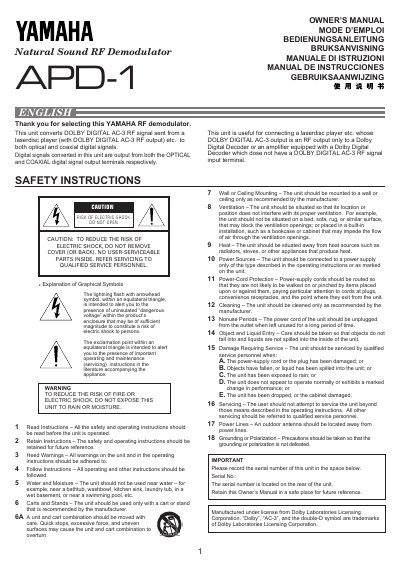

Yamaha APD-1 RF Demodulator Owner's Manual

About this manual

The Yamaha APD-1 is an RF demodulator designed to convert Dolby Digital AC-3 RF signals sent from laserdisc players to both optical and coaxial digital signals. This unit is useful for connecting laserdisc players with RF-only outputs to Dolby Digital decoders or amplifiers that lack an RF input terminal.

The document provides safety instructions, FCC compliance information for US customers, and general operating precautions. It details how to handle the unit, including ventilation requirements, power source connections, and cleaning procedures. Specific instructions are provided for UK models regarding mains lead wiring colors and voltage selection.

What's inside

• Safety Instructions
• FCC Information
• Listening Caution
• General Operating Instructions
• Voltage Selector
• UK Model Instructions

Specifications

Frequently asked questions

When should the voltage selector be set?

The voltage selector must be set for the local main voltage before plugging the unit into the AC main supply.

What wire colors are used for the UK model mains lead?

The blue wire is neutral and the brown wire is live.
