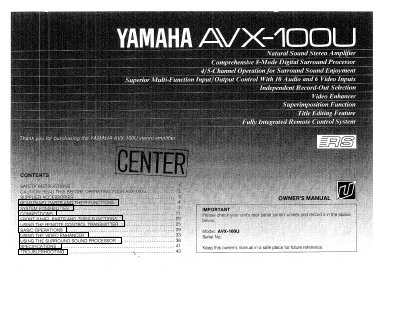

Yamaha AVX-100U Multi-Function Input/Output Control Manual

Brand: Yamaha
Category: Player
Document type: User Manual
Language: English
Pages: 46
File format: PDF
File size: 3.5 MB
Published: 11 June, 2012
Updated: 11 June, 2012
MD5 checksum: D0EDBF317C8281F5CB1F6F782D31DA24
PDF: Yamaha AVX-100U Multi-Function Input/Output Control Manual PDF

About this manual

The Yamaha AVX-100U is a multi-function unit designed for audio and video control. It features independent record-out selection, a wide enhancer, and a surround sound processor. The manual details how to use these functions effectively.

What's inside

Safety Instructions
System Configurations
Remote Control
Connections
Using the Video Enhancer
Using the Surround Sound Processor
Troubleshooting
Specifications

Specifications

Input/Output Control	10 Audio and 6 Video Inputs
Enhancer	Wide Enhancer
Processor	Surround Sound Processor

Frequently asked questions

What are the basic system configurations for this unit?

The unit can be used as an Integrated Amplifier in a 4-Speaker System or a 6-Channel System using a power amplifier for the center speakers.

What is the maximum power consumption for the switched AC outlets?

The total maximum power consumption of components attached to the switched outlets must not exceed 100 watts.
