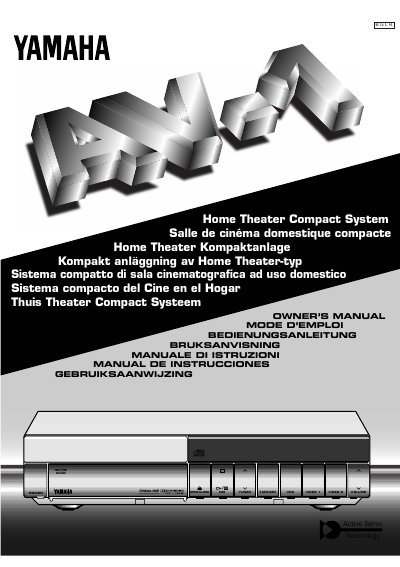

Yamaha AV-1 Home Theater Compact System Owner's Manual

About this manual

This manual provides instructions for the Yamaha AV-1 Home Theater Compact System, including unpacking, installation, and connection of accessories such as remote controls, speaker cords, and antennas. It details the system configuration and features, including the Digital Sound Field Processor (DSP).

The guide covers essential procedures such as setting up speakers, making audio and video connections, and adjusting system settings like clock time and display brightness. It also explains how to operate the system for listening to various sources, including compact discs, radio programs, and external units, as well as using the built-in timer functions.

What's inside

• Supplied Accessories
• Introduction
• Precautions
• System Configuration
• Setting Up the Speakers
• Connections
• Controls and Their Functions
• Listening to a Compact Disc
• Listening to a Radio Program
• Troubleshooting

Specifications

Frequently asked questions

What is the minimum space required around the unit for ventilation?

You must allow a space of at least 10 cm behind, 10 cm on both sides, and 20 cm above the top panel.

What should be done to eliminate condensation inside the unit?

Leave the power on with no disc in the unit until normal playback is possible, which takes about 1 hour.

What is the recommended procedure for increasing volume?

Always set the volume to minimum before starting an audio source and increase it gradually after play has started.
